Raster Data Models

A raster image is the same type of image that you have been taking with a digital camera or your phone.

Raster Data Model (review)



What makes rasters unique from vector data is that rasters cover a rectangular area with a uniformly spaced grid of cells, also known as "picture elements" or "pixels".

In GIS, we use rasters to represent the value or attribute of a real world entity or phenomenon. A Digital Elevation Model, or DEM contains pixels where each pixel contains the average elevation of the land the pixel covers. The Image below shows a DEM of Humboldt County. Each successive image shows what happens when we zoom in. Eventually the pixels are quite large and then, using BlueSpray, we can overlay the values that represent each pixel. These values are really what we are interested in for spatial analysis rather than what the image looks like.

Graphic showing the increasing size and eventually the pixel values within raster data

In a raster, the cells,are arranged in rows and columns. Note that the columns go from 0 on the left to the number of horizontal pixels -1 on the right. The rows start at 0 on the top and increase GOING DOWN to the number of vertical pixels - 1. Rasters are one of the only formats that increases going down and this is opposite of the spatial coordinate systems.

A grid of raster pixels showing the rows and columns increasing from 0 in the upper left

All cells in a raster appear to be the same size in a GIS application but may represent an area on the ground that has a different width than height. Also note that while the cells are always "rectangular" the original pixels when the data was remotely sensed was probably larger and more of an ellipse. This is due to the optics in the sensor. The bottom line is don't expect the pixels to exactly represent what is on the ground.

Data Types

You've seen the table below before, when we were talking about attributes. For a refresher, remember that this table represents the ways that computers represent data.

Name Number of Bits Number of Bytes Minimum Value Maximum Value Number of Values Significant Digits
Bit 1 1/8 0 1 2 (21) <1
Chew 2 1/4 0 3 4 (22) <1
Nibble 4 1/2 0 15 16 (24) >1
Unsigned Byte 8 1 0 255 256 (28) >2
Signed Byte
(aka chars)
8 1 -128 127 256 (28) >2
Unsigned Short 16 2 0 65535 65536 (216 or 64k) >4
Signed Short 16 2 -32768 32767 65536 (216 or 64k) >4
Unsigned Integer (Int) 32 4 0 4,294,967,295 4,294,967,295 (232 or 4Gig) >9
Signed Integer 32 4 -2,147,483,648 2,147,483,647 4,294,967,295 (232 or 4Gig) >9
Long Integer
(always signed)
64 8 A big negative number A big positive number 264 >19
Float
(always signed)
32 4 ~ -1040 ~ 1040 232 ~7
Double
(always signed)
64 8 ~ -10300 ~ 10300 264 ~15

See: Integer Overflow, IEEE Standard 754 Floating Point Numbers

ArcGIS is not consistent in its terminology or support for numeric data types. Use the table below to remember the differences between attributes, rasters, and Geodatabases (which we'll talk about more later in the session). The numeric types that I recommend are the ones in bold. Also note that ArcGIS does not support a 64-bit (double) numeric floating point type. This can cause problems with some calculations but it is rare that 64-bits are needed.

Name ArcGIS Attributes ArcGIS Rasters Geodatabase
Unsigned byte   Unsigned 8 bit
Signed byte   Signed 8 bit
Unsigned short   Unsigned 16 bit
Signed short Short Integer Signed 16 bit Short Integer
Unsigned Integer   Unsigned 32 bit
Signed Integer Long Integer Signed 32 bit Long Integer
Float Float Floating-point 32 bit Single-precision floating point
Double Double   Double-precision floating point
String Text   Text
Date Date   Date



Arc GIS documentation indicates that values in a GRID file are always stored as 32-bit values. See: Adding Fields to a Shapefile Attribute Table in ArcGIS, Bit Depth Capacity for Raster Dataset Cells, Technical Specifications for Raster Dataset Format

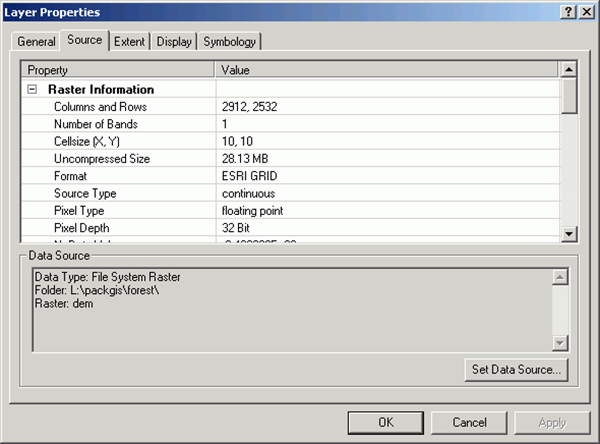

For rasters, Esri breaks up the numeric data type into a "Pixel Type" and "Pixel Depth". The "Pixel Type" will be unsigned, signed (both integers), and floating point (which is always signed). The "Pixel Depth" is then the number of bits per band. The reason I say "band" is because one pixel can represent multiple bands of data. The "Pixel Depth" is really the bit depth allocated for one band of data within a pixel. In other words, You can find the "Pixel Type" and "Pixel Depth" in the "Properties" dialog for a layer that contains a raster in ArcMap

Below are some common types for rasters:

Data Set Number of Bands Pixel Type Pixel Depth (band depth) Notes
DEM 1 signed integer 16 Bit It's good to convert these to floating point for calculations
NAIP (CA Satellite data) 3 (RGB) unsigned Integer 8 Bit Common for display of color data
NLCD (Land Cover) 1 unsigned integer 8 Bit Common for coded data (see below)
PRISM (Climate Data) 1 floating point 32 Bit Becoming more common for rasters with measured or modeled values
LandSat 1 unsigned integer 16 Bit Each LandSat scene is made up of 7 bands but they are distributed as separate files to make it easy to access the data.



Multi-band Rasters

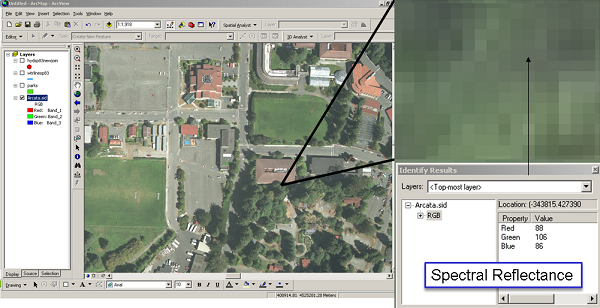

Most rasters used in GIS have just 1 band. However, the satellite photos you've been using have 3 bands, one each for red, green, and blue. The three bands together make the color images we see like the one below. These rasters are called true Color Composite or RGB rasters.

True Color Composite



Measurements or Codes

Most rasters will contain "measured values" or "computed values". This include just about any remotely sensed data I can think of including: visual, elevation, temperature, precipitation, thermal, etc. This also includes most computed or modeled data such as habitat suitability, risk of land slides or flooding, or amount of pollution. However, there are some rasters that include "codes". The codes are integer numeric values but also have a textural name and description of what they mean. The most common raster with codes is the National Land Cover Database. As with all rasters, remember that what is in the pixel does not correspond exactly to what is on the ground, there is always uncertainty in our data.

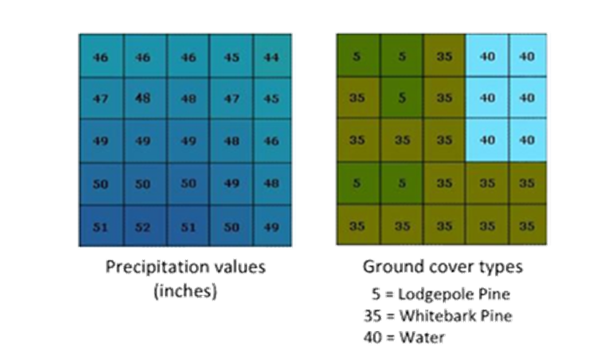

An image showing two types of raster data, measurements and codes

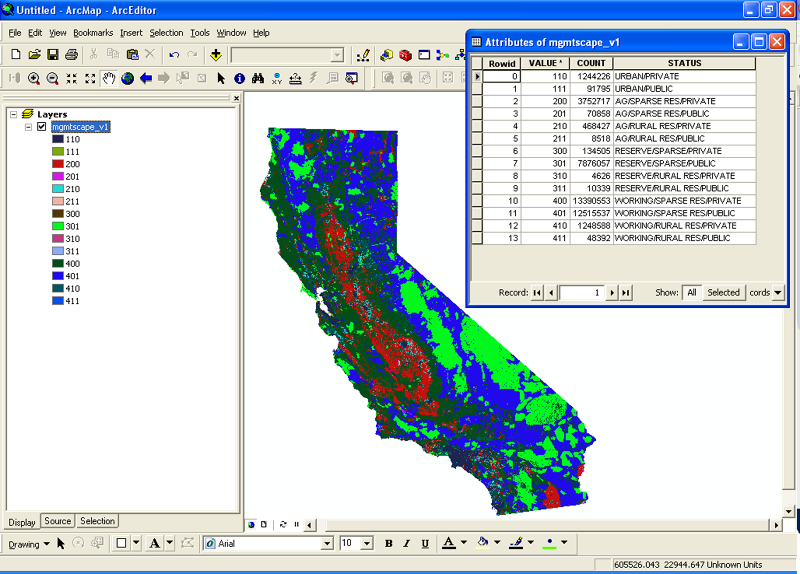

Below is an image in ArcGIS showing the "attributes" that provide the meaning for each of the codes in the pixels in the raster. Note that while these rasters are typically displayed in color, they are actually 1-band rasters where each code has been given a color.

An image of a land cover raster loaded into ArcGIS with the table of associated codes





Test Your Knowledge
